OpenID Connect Setup

Set up using the platform
Setup using the API

Using the Rownd Platform

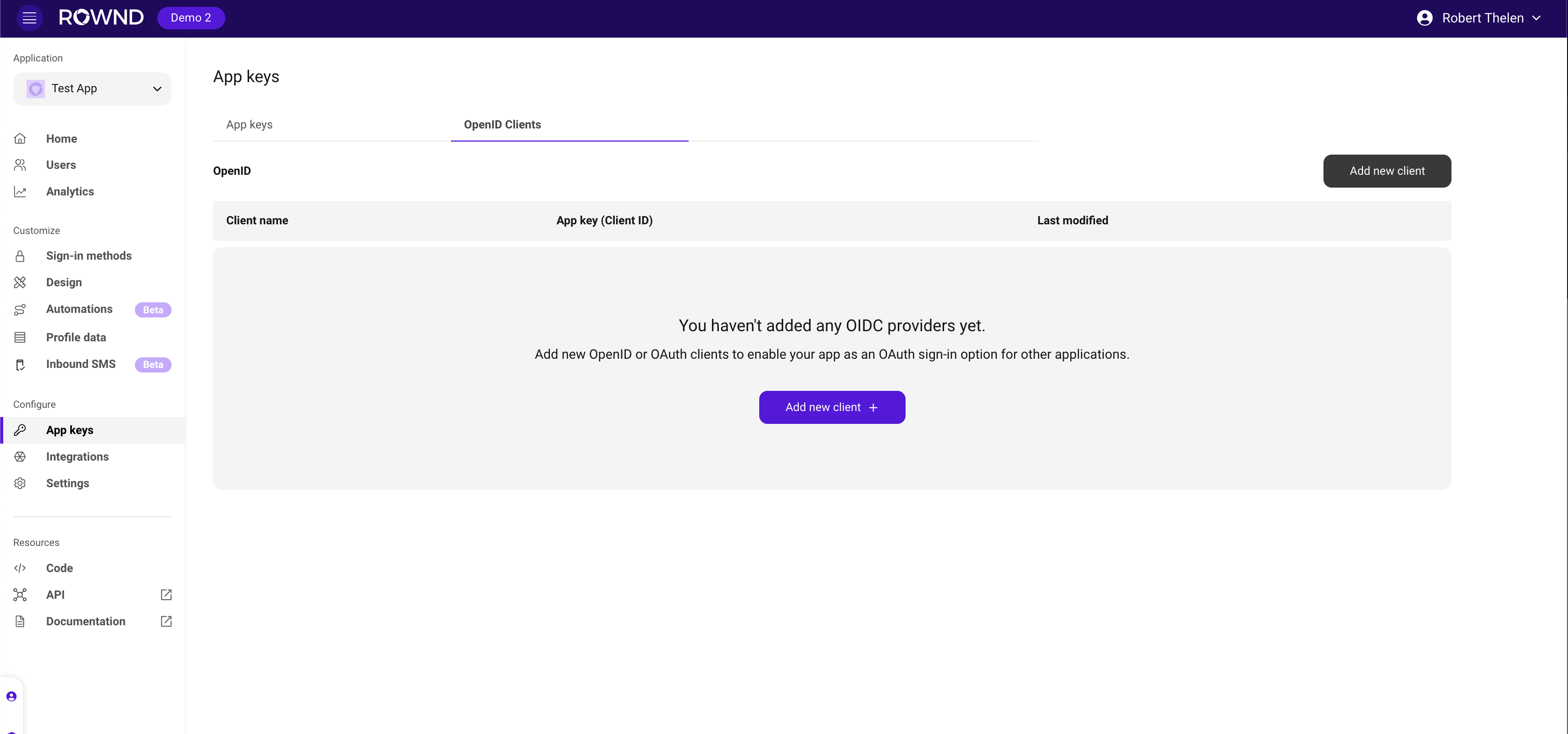

You can set up an OIDC client directly through the Rownd platform: 1. Navigate to your application 2. Open the “App Keys” page on the left menu and click on the “OIDC Clients” tab

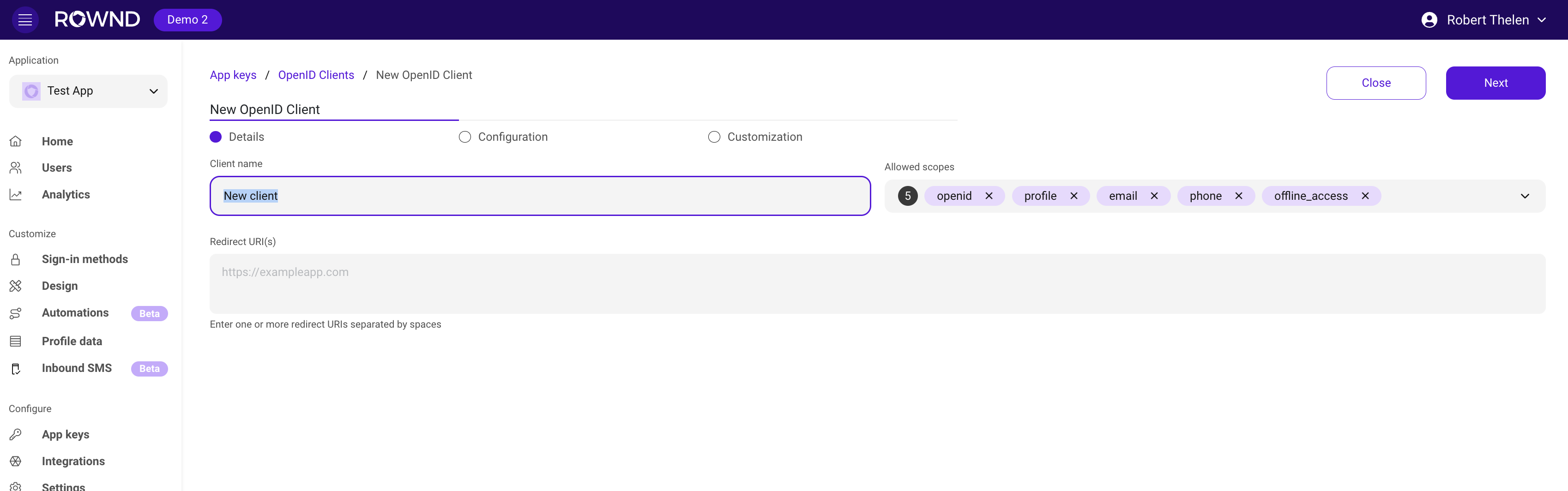

3. Click “Create New OIDC Client” 4. Set your OIDC client details OIDC Clients

Fields

Name: A display name for your OIDC client (required)
Redirect URIs: Where users will be redirected after authentication (required). You can add more than one.
- Example: https://example.com/callback
Allowed Scopes: The scopes that the OIDC client is allowed to request. You can add more than one.
- Example: openid profile email ; note; you can add additional date fields to Rownd for more finite scopes.

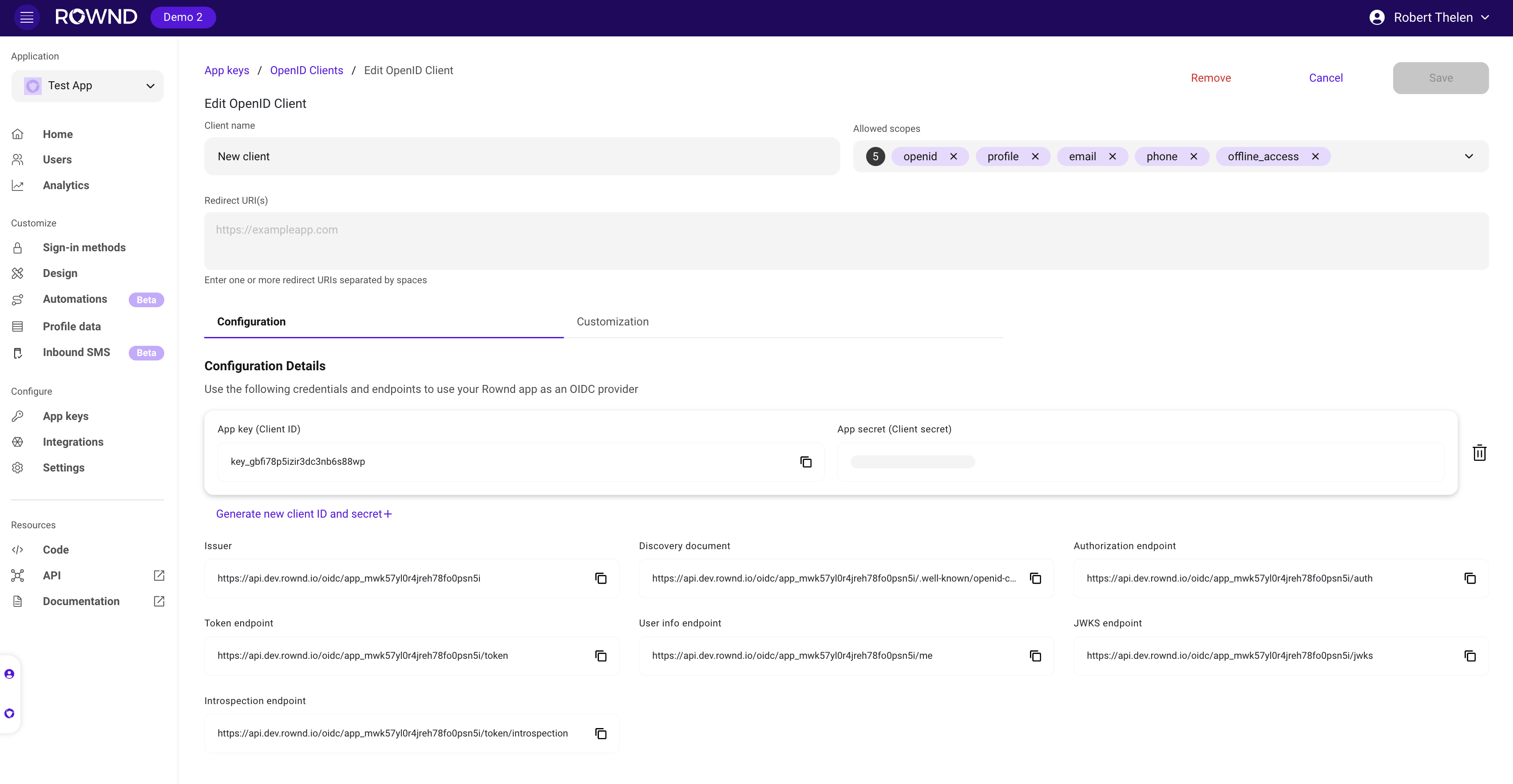

Click “Next” 5. Retrieve client credentials and OpenID endpoints You can now retrieve your client credentials and use them to configure your OIDC client. You can also see the OIDC endpoints.

Make sure to save your client credentials (client_id and secret) after creation, as the secret cannot be retrieved later.

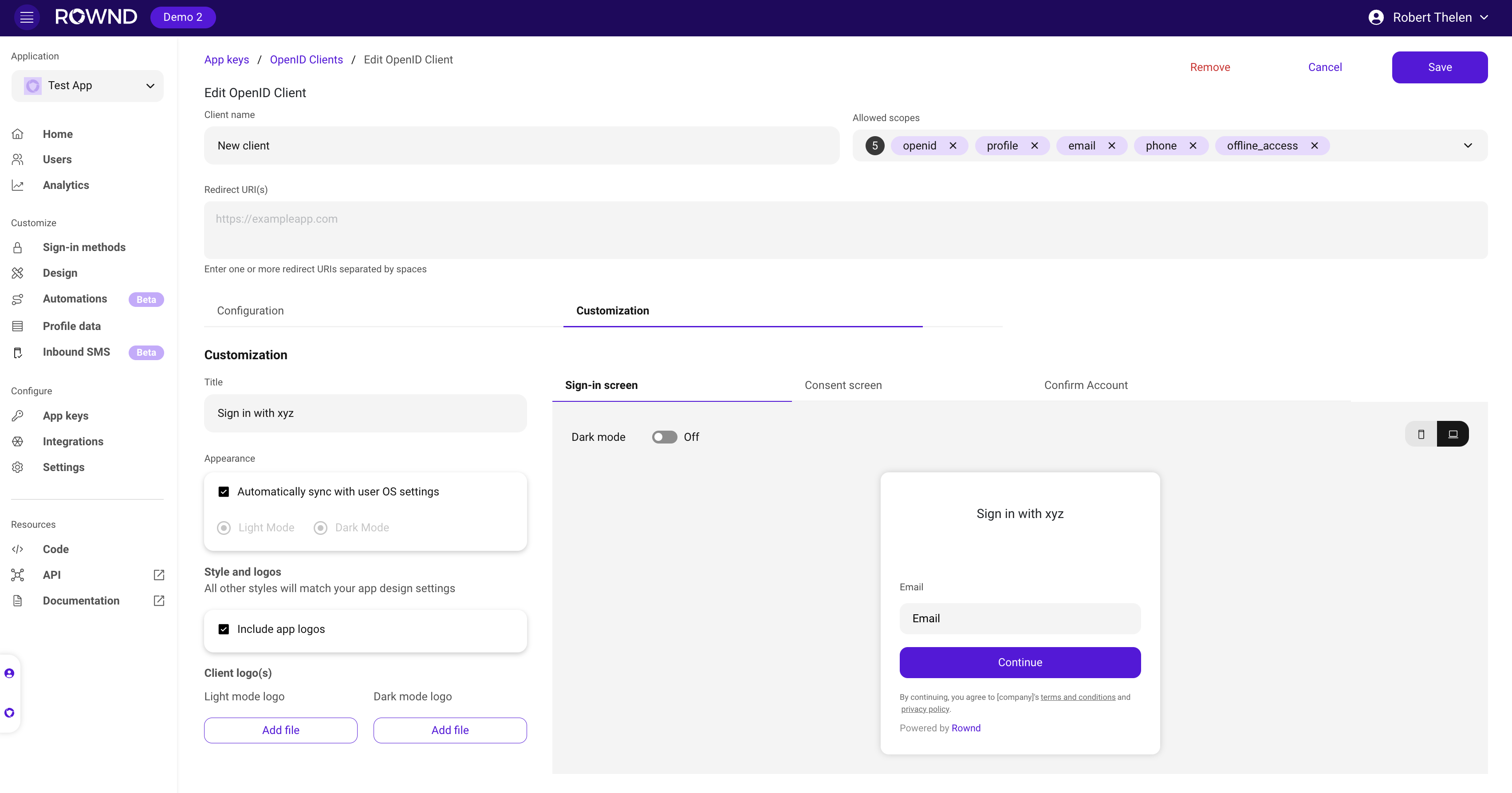

6. OIDC customizations Click on “Customizations” to customize sign-in and consent modals with a call to action and logos that help your users stay in context. OIDC Clients

Using the API

To create or update an OIDC client configuration via the API, you’ll need your Rownd application credentials.

Required headers

Header	Description
`x-rownd-app-key`	Your Rownd application key
`x-rownd-app-secret`	Your Rownd application secret

API endpoints

Create: POST https://api.rownd.io/applications/{app-id}/oidc-clients
Update: PUT https://api.rownd.io/applications/{app-id}/oidc-clients/{client-id}

cURL Example

# Create new OIDC client
curl -X POST 'https://api.rownd.io/applications/{app-id}/oidc-clients' \
-H 'x-rownd-app-key: YOUR_APP_KEY' \
-H 'x-rownd-app-secret: YOUR_APP_SECRET' \
-H 'Content-Type: application/json' \
-d '{
  "name": "Example OIDC Provider",
  "description": "Example OIDC Provider",
  "config": {
    "allowed_origins": [
      "https://example.com"
    ],
    "redirect_uris": [
      "https://example.com/callback"
    ],
    "post_logout_uris": [
      "https://example.com/logout"
    ],
    "logo_uri": "https://storage.rownd.io/logo-example.png",
    "logo_dark_mode_uri": "https://storage.rownd.io/logo-dark-example.png"
  }
}'

# Update existing OIDC client
curl -X PUT 'https://api.rownd.io/applications/{app-id}/oidc-clients/{client-id}' \
-H 'x-rownd-app-key: YOUR_APP_KEY' \
-H 'x-rownd-app-secret: YOUR_APP_SECRET' \
-H 'Content-Type: application/json' \
-d '{
  "name": "Updated OIDC Provider",
  "description": "Updated OIDC Provider",
  "config": {
    "allowed_origins": [
      "https://example.com"
    ],
    "redirect_uris": [
      "https://example.com/callback"
    ],
    "post_logout_uris": [
      "https://example.com/logout"
    ],
    "logo_uri": "https://storage.rownd.io/logo-example.png",
    "logo_dark_mode_uri": "https://storage.rownd.io/logo-dark-example.png"
  }
}'

Replace YOUR_APP_KEY, YOUR_APP_SECRET, and {app-id} with your actual Rownd application credentials and ID. For the update request, also replace {client-id} with your OIDC client ID.

Configuration

Refer to the Rownd OpenID Connect API documentation for detailed information on creating and managing OpenID clients. To create a new OIDC client configuration, send a POST request to api.rownd.io/applications/{app-id}/oidc-clients with the following body parameters:

Request Body Parameters

Parameter	Description
`name`	The display name of your OIDC client
`description`	A brief description of your OIDC client
`config.allowed_origins`	Array of allowed origins that can make requests to the OIDC server
`config.redirect_uris`	Array of valid URIs where users will be redirected after authentication
`config.post_logout_uris`	Array of valid URIs where users will be redirected after logging out
`config.logo_uri`	URL to the logo image used in light mode
`config.logo_dark_mode_uri`	URL to the logo image used in dark mode

Example Request

{
  "name": "Example OIDC Provider",
  "description": "Example OIDC Provider",
  "config": {
    "allowed_origins": [
      "https://example.com"
    ],
    "redirect_uris": [
      "https://example.com/callback"
    ],
    "post_logout_uris": [
      "https://example.com/logout"
    ],
    "logo_uri": "https://storage.rownd.io/logo-oidc-client-app_1234_oidcc_5667-filename.png",
    "logo_dark_mode_uri": "https://storage.rownd.io/logo-oidc-client-app_1234_oidcc_5667-filename.png"
  }
}

Response Format

Both POST and PUT requests will return a response with the following structure:

{
  "id": "oidc_client_ck9c1glf0100001l2f7z8z9z9",
  "app_id": "app_ckl8bcf1g000001l2f7z8z9z9",
  "name": "Example OIDC Provider",
  "description": "Example OIDC Provider",
  "config": {
    "allowed_origins": [
      "https://example.com"
    ],
    "redirect_uris": [
      "https://example.com/callback"
    ],
    "post_logout_uris": [
      "https://example.com/logout"
    ],
    "logo_uri": "https://storage.rownd.io/logo-oidc-client-app_1234_oidcc_5667-filename.png",
    "logo_dark_mode_uri": "https://storage.rownd.io/logo-oidc-client-app_1234_oidcc_5667-filename.png"
  },
  "created_at": "2024-12-05T23:34:05.709Z",
  "updated_at": "2024-12-05T23:34:05.709Z",
  "credentials": [
    {
      "name": "Production API Key",
      "client_id": "string",
      "secret": "string",
      "expires": "2024-12-31T23:59:59Z",
      "application": "app_k3y1qwerty12345",
      "app_variant_id": "variant_fgy1qw367fty121lm",
      "oidc_client_configuration_id": "oidcc_k3y1qwerty12345",
      "created_at": "2024-12-05T23:34:05.709Z",
      "updated_at": "2024-12-05T23:34:05.709Z"
    }
  ]
}

Response Fields

Field	Description
`id`	Unique identifier for the OIDC client configuration
`app_id`	The Rownd application ID this configuration belongs to
`name`	Display name of the OIDC client
`description`	Description of the OIDC client
`config`	Configuration object containing origins, URIs, and logos
`created_at`	Timestamp of when the configuration was created
`updated_at`	Timestamp of the last update
`credentials`	Array of credential objects containing authentication details

Credentials Object

Field	Description
`name`	Name of the credential
`client_id`	The OIDC client ID to use for authentication
`secret`	The client secret to use for authentication
`expires`	Expiration date of the credentials
`application`	Associated Rownd application ID
`app_variant_id`	Variant ID if applicable
`oidc_client_configuration_id`	ID of the OIDC client configuration
`created_at`	Timestamp of when the credentials were created
`updated_at`	Timestamp of the last credentials update

Store the client_id and secret securely as they will be needed for all subsequent OIDC operations.

OpenID Configuration Discovery

Rownd provides a standard OpenID Configuration discovery endpoint that returns a complete list of OIDC specifications and endpoints for your application.

Discovery Endpoint

GET api.rownd.io/oidc/{app_id}/.well-known/openid-configuration

Replace {app_id} with your Rownd application ID to get the complete OIDC configuration for your app. For example:

https://api.rownd.io/oidc/app_wj43asd4ywn790plclbhux6a/.well-known/openid-configuration

This endpoint returns a JSON document containing all supported OIDC features, endpoints, and capabilities of your Rownd OIDC server, following the OpenID Connect Discovery specification.

The discovery endpoint is publicly accessible and does not require authentication. It’s commonly used by OIDC clients to automatically configure themselves.

OpenID Endpoints

Rownd provides three main OIDC endpoints, all accessible at https://api.rownd.io/oidc/{app-id}/:

1. Authorization Endpoint (`/auth`)

Used to authenticate users and obtain authorization
Initiates the authentication flow
Returns an authorization code that can be exchanged for tokens
Supports standard OIDC parameters like scope, response_type, and redirect_uri

2. Token Endpoint (`/token`)

Exchanges authorization codes for access and ID tokens
Supports refresh token requests
Requires client authentication using client_id and client_secret
Returns JWT tokens containing user information and access rights

3. UserInfo Endpoint (`/me`)

Provides detailed information about the authenticated user
Requires a valid access token
Returns user profile data based on the granted scopes
Supports standard OIDC claims

Credentials

After creating an OIDC client configuration, you’ll receive credentials in the response:

client_id: Your unique client identifier
client_secret: Your client secret for secure communication

Store your client_secret securely! It cannot be recovered if lost and would require generating new credentials.

Implementation Flow

Configure your OpenID client using the configuration endpoint
Store the returned client_id and client_secret securely
Implement the authorization flow:
- Direct users to the /auth endpoint for authentication
- Handle the callback with the authorization code
- Exchange the code for tokens at the /token endpoint
- Fetch user information from the /me endpoint as needed

Example Implementation

// Example authorization request
const authUrl = `https://api.rownd.io/oidc/${appId}/auth?` +
  `client_id=${clientId}&` +
  `redirect_uri=${encodeURIComponent(redirectUri)}&` +
  `response_type=code&` +
  `scope=openid profile email`;

// Redirect user to authUrl

// After receiving the authorization code in your callback:
async function exchangeCode(code) {
  const response = await fetch(`https://api.rownd.io/oidc/${appId}/token`, {
    method: 'POST',
    headers: {
      'Content-Type': 'application/x-www-form-urlencoded',
    },
    body: new URLSearchParams({
      grant_type: 'authorization_code',
      code,
      client_id: clientId,
      client_secret: clientSecret,
      redirect_uri: redirectUri,
    }),
  });

  return await response.json();
}

Best Practices

Always use HTTPS for redirect URIs
Implement proper token storage and refresh mechanisms
Validate all tokens on your backend
Keep your client_secret secure and never expose it in client-side code
Implement proper error handling for all OIDC endpoints

Need help? Contact our support team for assistance with your OIDC implementation.

Uploading OpenID Client Logos

You can upload custom logos for your OIDC client that will be displayed in light and dark modes. Logos can be uploaded using the following API endpoint.

Logo Upload Endpoint

PUT /application/{app-id}/oidc_clients/{client-id}/logo/{type}

Parameters

Parameter	Description
`app`	Your Rownd application ID
`client`	Your OIDC client ID
`type`	Either ‘light’ or ‘dark’ for the respective display modes

Required Headers

Header	Description
`x-rownd-app-key`	Your Rownd application key
`x-rownd-app-secret`	Your Rownd application secret
`x-rownd-filename`	The filename of your logo

Only PNG and SVG file formats are supported for logo uploads.

cURL Example

# Upload light mode logo
curl -X PUT 'https://api.rownd.io/application/{app-id}/oidc_clients/{client-id}/logo/light' \
-H 'x-rownd-app-key: YOUR_APP_KEY' \
-H 'x-rownd-app-secret: YOUR_APP_SECRET' \
-H 'x-rownd-filename: logo.png' \
-H 'Content-Type: image/png' \
--data-binary '@/path/to/your/logo.png'

# Upload dark mode logo
curl -X PUT 'https://api.rownd.io/application/{app-id}/oidc_clients/{client-id}/logo/dark' \
-H 'x-rownd-app-key: YOUR_APP_KEY' \
-H 'x-rownd-app-secret: YOUR_APP_SECRET' \
-H 'x-rownd-filename: logo-dark.svg' \
-H 'Content-Type: image/svg+xml' \
--data-binary '@/path/to/your/logo-dark.svg'

Ensure your logo files meet the following requirements:

File format: PNG or SVG only
Recommended dimensions: At least 512x512 pixels for optimal display
File size: Keep files under 5MB for best performance

Advanced configuration

Custom interaction endpoint

By default, OpenID authentication flows direct users to a Rownd-hosted URL for sign-in. However, if you have Rownd integrated into your website or application, you can provide a custom interaction endpoint for a more streamlined experience. When configured, users will be directed to your site/app instead of the default Rownd URL. This provides several benefits:

Maintains your branded experience
Leverages existing user sessions
Reduces authentication steps when users are already logged in
Provides a more seamless OIDC consent flow

Configuration

Add the interaction_endpoint to your OIDC client configuration under the config object:

{
  "name": "Example OIDC Provider",
  "description": "Example OIDC Provider",
  "config": {
    "allowed_origins": [
      "https://example.com"
    ],
    "redirect_uris": [
      "https://example.com/callback"
    ],
    "post_logout_uris": [
      "https://example.com/logout"
    ],
    "interaction_endpoint": "https://example.com/auth",
    "logo_uri": "https://storage.rownd.io/logo-example.png",
    "logo_dark_mode_uri": "https://storage.rownd.io/logo-dark-example.png"
  }
}

The interaction endpoint must be a page where the Rownd JavaScript snippet is properly installed and configured (a single-page app like React will also work). This ensures the authentication flow can properly handle the OpenID consent process.

User flow example

User initiates OIDC sign-in from a third-party application
Instead of going to hub.rownd.io, they are redirected to your custom endpoint (e.g., https://example.com/auth)
If the user is already signed in on your site:
- They only need to approve the OIDC consent
- No additional authentication is required
If the user is not signed in:
- They’ll see your normal Rownd authentication flow
- After signing in, they’ll be prompted for OIDC consent
After consent, they are redirected back to the original application

This approach can significantly reduce friction in the authentication process, especially for users who frequently interact with your platform.

Welcome

Configuration

Administration

Security

OpenID Connect Setup

Table of Contents

Using the Rownd Platform

Fields

Using the API

Required headers

API endpoints

cURL Example

Configuration

Request Body Parameters

Example Request

Response Format

Response Fields

Credentials Object

OpenID Configuration Discovery

Discovery Endpoint

OpenID Endpoints

1. Authorization Endpoint (`/auth`)

2. Token Endpoint (`/token`)

3. UserInfo Endpoint (`/me`)

Credentials

Implementation Flow

Example Implementation

Best Practices

Uploading OpenID Client Logos

Logo Upload Endpoint

Parameters

Required Headers

cURL Example

Advanced configuration

Custom interaction endpoint

Configuration

User flow example

Welcome

Configuration

Administration

Security

​Table of Contents

​Using the Rownd Platform

​Fields

​Using the API

​Required headers

​API endpoints

​cURL Example

​Configuration

​Request Body Parameters

​Example Request

​Response Format

​Response Fields

​Credentials Object

​OpenID Configuration Discovery

​Discovery Endpoint

​OpenID Endpoints

​1. Authorization Endpoint (/auth)

​2. Token Endpoint (/token)

​3. UserInfo Endpoint (/me)

​Credentials

​Implementation Flow

​Example Implementation

​Best Practices

​Uploading OpenID Client Logos

​Logo Upload Endpoint

​Parameters

​Required Headers

​cURL Example

​Advanced configuration

​Custom interaction endpoint

Configuration

User flow example

Table of Contents

Using the Rownd Platform

Fields

Using the API

Required headers

API endpoints

cURL Example

Configuration

Request Body Parameters

Example Request

Response Format

Response Fields

Credentials Object

OpenID Configuration Discovery

Discovery Endpoint

OpenID Endpoints

1. Authorization Endpoint (`/auth`)

2. Token Endpoint (`/token`)

3. UserInfo Endpoint (`/me`)

Credentials

Implementation Flow

Example Implementation

Best Practices

Uploading OpenID Client Logos

Logo Upload Endpoint

Parameters

Required Headers

cURL Example

Advanced configuration

Custom interaction endpoint
